exhaust fan Shutter Exhaust fan |
|
|
『 Previous 』『 Next
』 Total 3 pages/Show 1
pages 「 1」「 2」「 3」 |
| Image |
Item No |
Specification |
Power |
Installing dimension connection tube diameter |
|
|

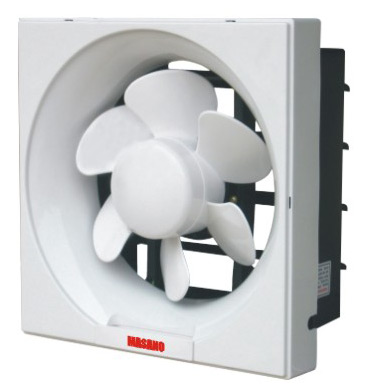

| Shutter Exhaust Fan(unidirectional wind pressure) |
| APB15A1 |
150mm 4.8m³/min |
18W |
200×200 |
| APB20A1 |
20Omm 8.1m³/min |
30W |
245×245 |
|
APB25A1 |
25Omm 12m³/min |
40W |
295×295 |
|
APB30A1 |
30Omm 18m³/min |
50W |
345×345 |
|
|

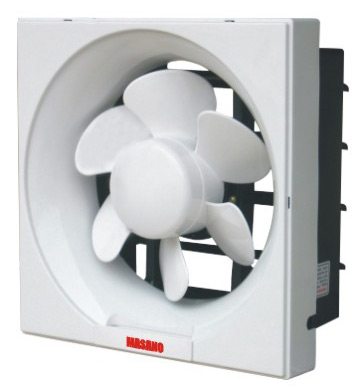

| Shutter Exhaust Fan(unidirectional wind pressure) |
| APB15B1 |
150mm 4.8m³/min |
18W |
200×200 |
| APB20B1 |
20Omm 8.1m³/min |
30W |
245×245 |
| APB25B1 |
25Omm 12m³/min |
40W |
295×295 |
| APB30B1 |
30Omm 18m³/min |
50W |
345×345 |
|
|

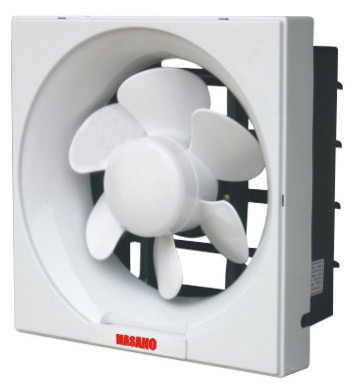

| Shutter Exhaust Fan(unidirectional wind,cord control
switch) |
| APB15C1 |
150mm 4.8m³/min |
18W |
200×200 |
| APB20C1 |
200mm 8.1m³/min |
30W |
245×245 |
| APB25C1 |
250mm 12m³/min |
40W |
295×295 |
| APB30C1 |
30Omm 18m³/min |
50W |
345×345 |
|
|
| Shutter Exhaust Fan(unidirectional wind,cord control
switch) |
| APB15D1 |
150mm 4.8m³/min |
18W |
200×200 |
| APB20D1 |
200mm 8.1m³/min |
30W |
245×245 |
| APB25D1 |
250mm 12m³/min |
40W |
295×295 |
| APB30D1 |
30Omm 18m³/min |
50W |
345×345 |
|
|

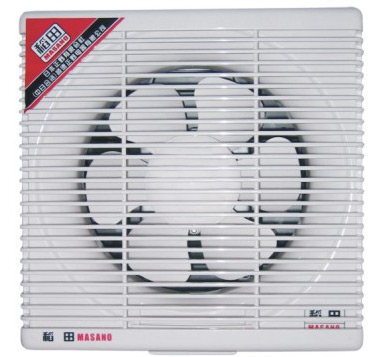

| Shutter Exhaust Fan(bidirectional wind,cord control
switch) |
| ASB15A1 |
150mm 4.8m³/min |
18W |
200×200 |
| ASB20A1 |
200mm 8.1m³/min |
30W |
245×245 |
| ASB25A1 |
250mm 12m³/min |
40W |
295×295 |
| ASB30A1 |
30Omm 18m³/min |
50W |
345×345 |
|
| |
|
|
|
